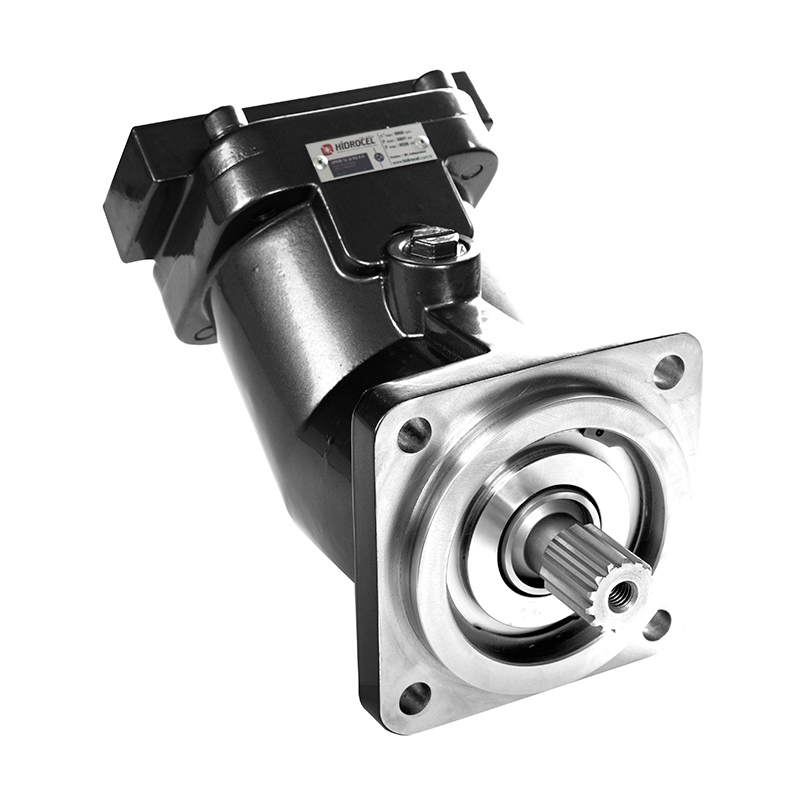

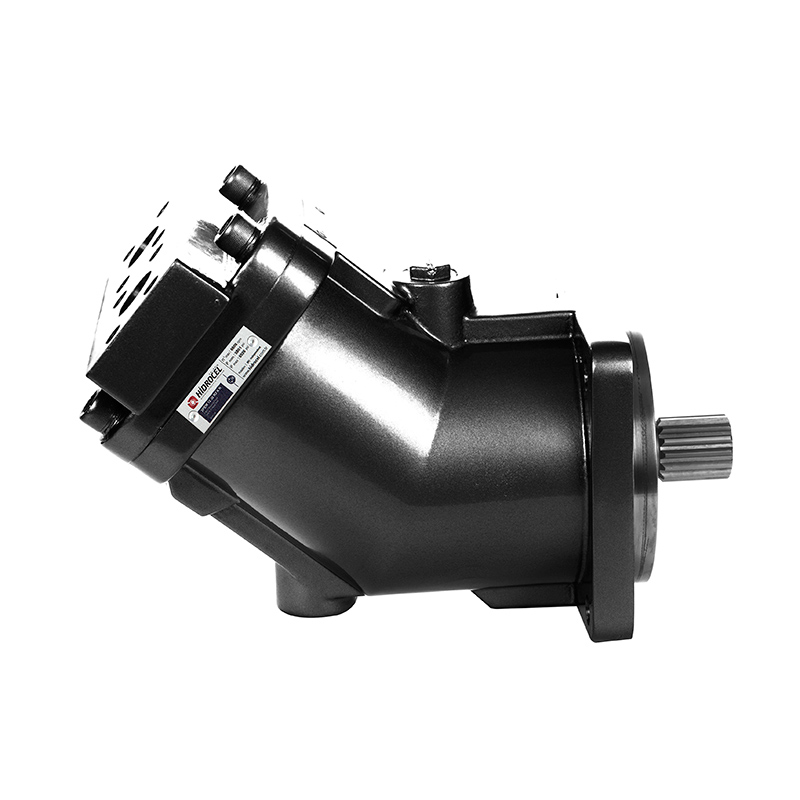

2PEM 63 CC SAE C HYDRAULIC PISTON MOTORS

2PEM have the following advantages;

Compact Design, Economical Conception, High Power Density, High Efficiency, High Rotating Speed, Range from 5 cc to 130 cc, High Pressure, Good Starting Characteristics, Optimized Weight and Size, Suitable for Mobile and Stationary Applications.

2PEM SAE Bent Axis Motors are available starting from : 5cc, 10cc, 12cc, 18cc, 25cc, 32cc, 40cc, 50cc, 56cc, 63cc, 80cc, 108 cc and 130cc.

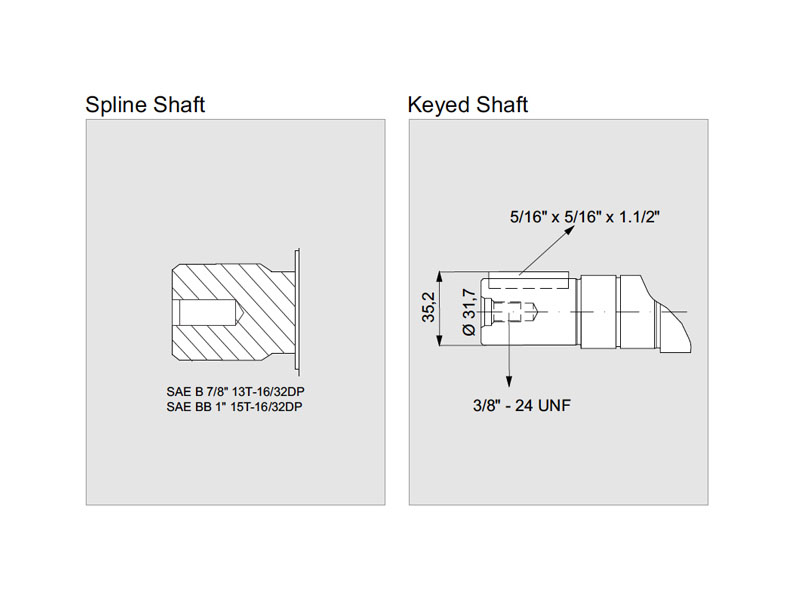

2PEM Motors have Parallel Keyed and Splined Shaft Versions. More details available at 2PEM Official Catalog..

Other Advantages of 2PEM

Interchangeable and compatible with other SAE bent-axis motors.

One-Piece Piston with Piston Rings.

Compact motor design with extra-durable components.

High Operational Reliability and High Starting Torque.

Extended warranty with comprehensive service support.

Special Designed Pistons.

Why Bent Axis ?

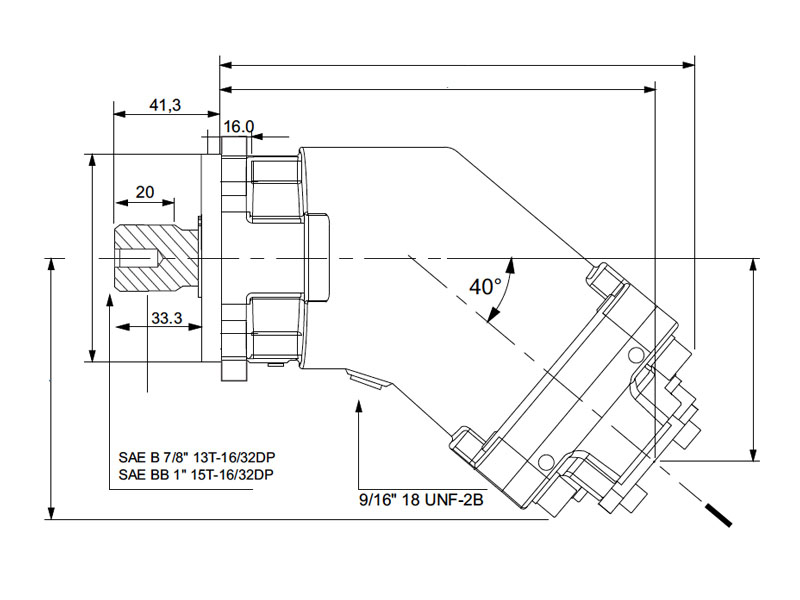

40-degree bent-axis design providing high power, small overall dimensions, optimum efficiency, and an economical design.

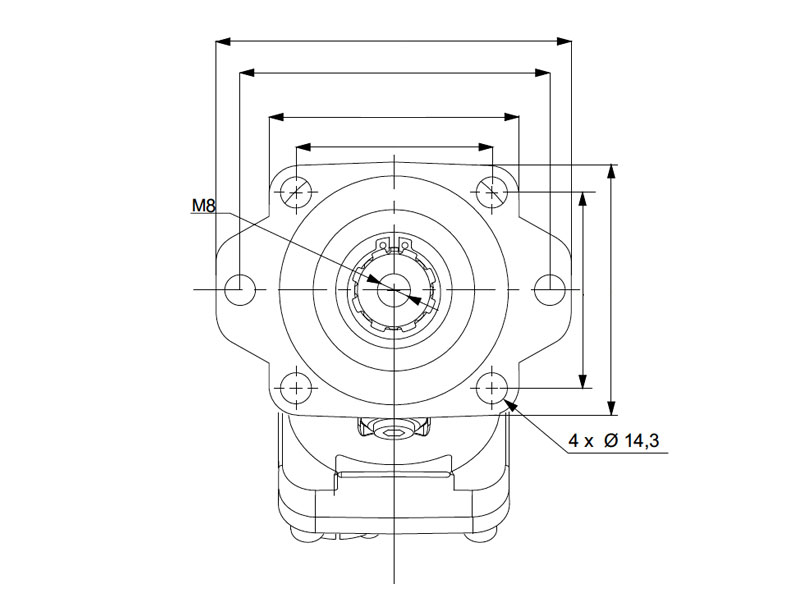

Flange and shaft designed for direct mounting on truck gearbox PTOs. The fixed-displacement bent-axis motor generates hydraulic fluid flow.

Designed for use in all high-power requirements, industrial and mobile, and all stationary hydraulic applications. The 2PEM is a fixed motor with a rotating group in a bent-axis design for open circuits.

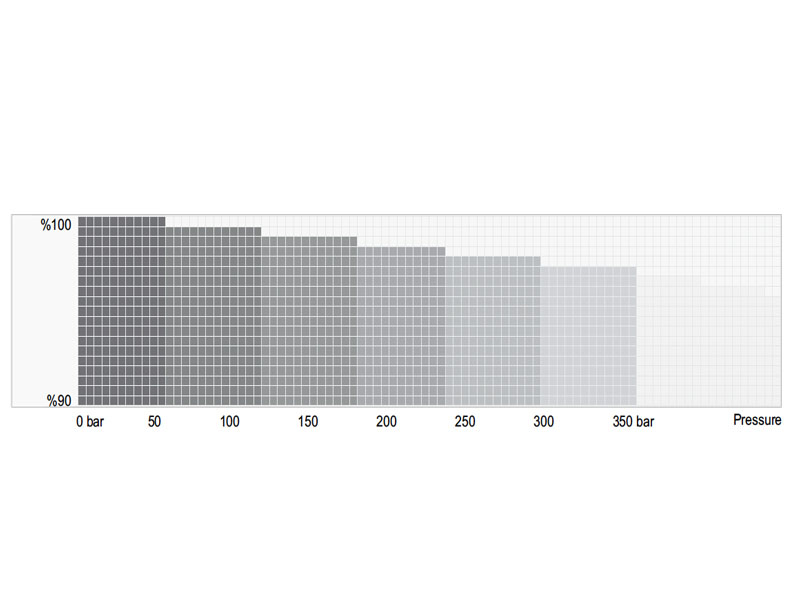

Flow, Efficiency, Performance

Flow is proportional to drive speed and displacement.

For axial piston units with bent-axis design, the Pistons are arranged diagonally with respect to the drive shaft. The motor covers the full displacement range from 5 to 130 cm³/rev.

The motor has been developed with modern styling and design to satisfy market demand, featuring new-generation plates and pistons that provide high flow performance, high pressures, high efficiency, and very small dimensions.

Pressure, Speed and Flow list of 2PEM

The motor is available both to DIN, ISO and SAE world standards and can be mounted either directly to a gearbox or any application.

If necessary, it can also be augmented with a Flushing/Purge or Anti-Cavitation Valve. Other brands of bent-axis motors are compatible and interchangeable with 2PEM bent-axis motors.

Refer to the data sheet and order confirmation for technical data, operating conditions, and operating limits of the bent-axis piston motors.
