C-2PM 18 CC HYDRAULIC PISTON MOTORS

C-2PM has the following advantages;

Compact Design, Economical Conception, High Power Density, High Efficiency, High Rotating Speed, Range from 5 cc to 63 cc, High Pressure, Good Starting Characteristics, Optimized Weight and Size, Splined or Keyed Shaft.

C-2PM DIN Bent Axis Motors are available starting from: 5cc, 12cc, 18cc, 25cc, 32cc, 40cc, 50cc, 56cc, and 63cc.

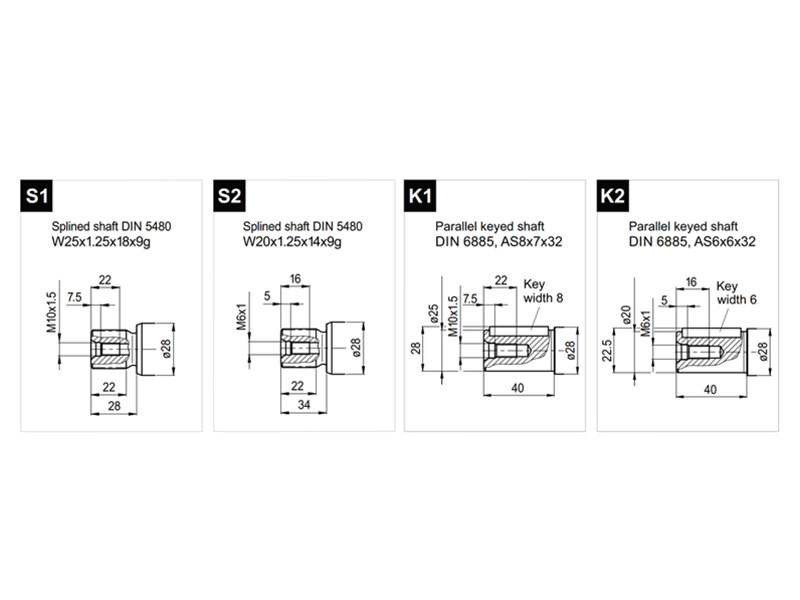

C-2PM Motors come in Parallel Keyed and Splined Shaft versions. More details are available in the C-2PM Official Catalog.

Other Advantages of C-2PM

Interchangeable and Compatible with other DIN Bent-Axis Motors.

Suitable for use in stationary and mobile applications

Compact motor design with extra-durable components.

High Operational Reliability and High Starting Torque.

Extended warranty with comprehensive service support.

Specially designed pistons.

Why Bent Axis ?

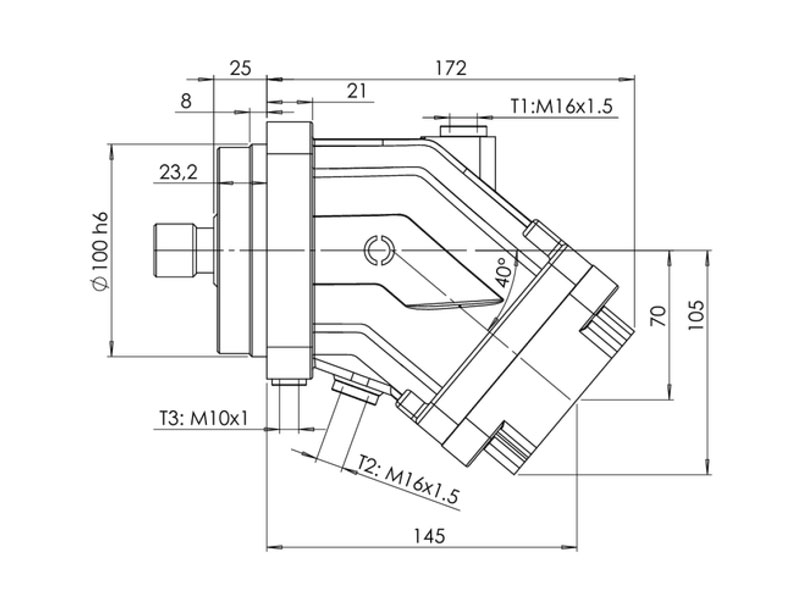

40 degree bent-axis design giving high power, small overall dimensions, optimum efficiency, and an economical design.

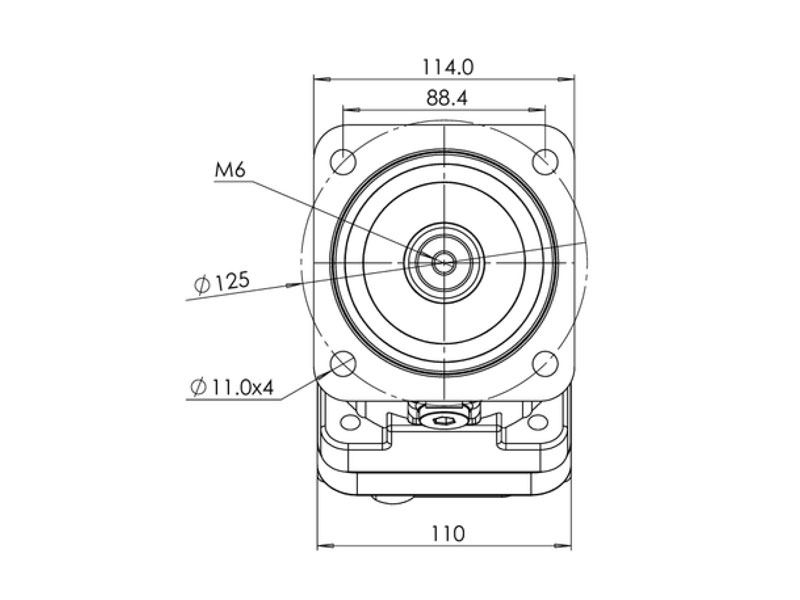

Flange and shaft designed for direct mounting. The fixed-displacement bent-axis motors generates a hydraulic fluid flow.

Designed for use in all high-power requirements, industrial and mobile, and all stationary hydraulic applications. The C-2PM is a fixed motor with a rotating group in a bent-axis design for open circuits.

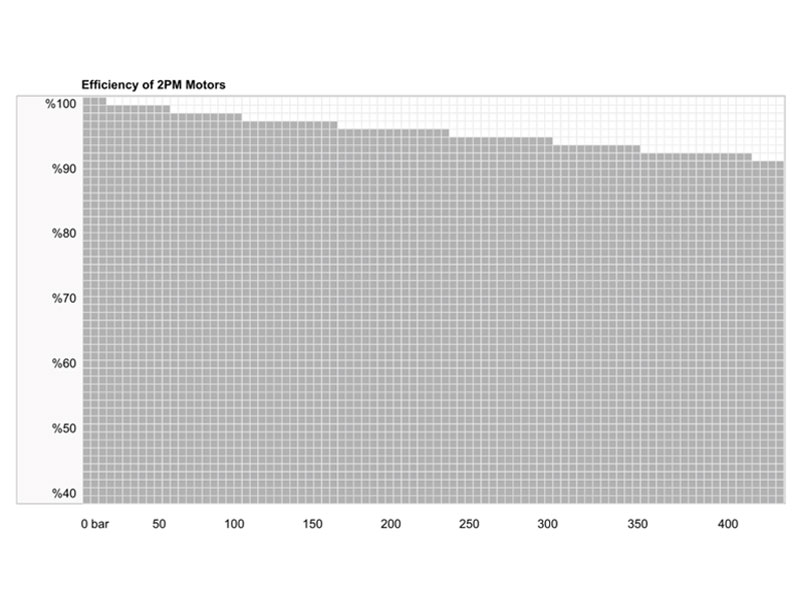

Flow, Efficiency, Performance

Flow is proportional to drive speed and displacement.

For axial piston units with bent-axis design, the Pistons are arranged diagonally with respect to the drive shaft. The motor covers the whole displacement range from 5 to 63 cm³/rev.

The motor has been developed with modern styling and design to satisfy market demand, featuring new-generation plates and pistons that provide high flow performance, high pressures, high efficiency, and very small dimensions.

Pressure, Speed and Flow list of C-2PM

The motor is compatible with ISO world standards and can be mounted directly to a gearbox or any application.

If necessary, it can also be augmented with a Flushing/Purge or Anti-Cavitation Valve. Other brands of bent-axis motors are compatible and interchangeable with C-2PM bent-axis motors.

Refer to the data sheet and order confirmation for technical data, operating conditions, and operating limits of the bent-axis piston motors.
